Architecture – ZKTeco Attendance Sync System

---

1. Architectural Overview

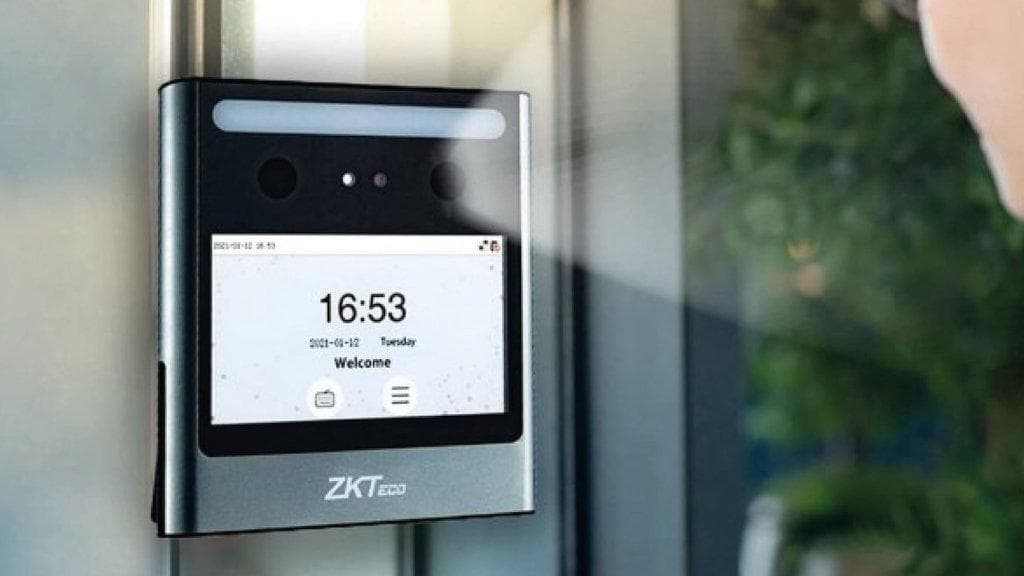

The ZKTeco Attendance Sync System is a cross-platform desktop application designed to reliably synchronize biometric attendance data from ZKTeco devices into ERPNext.

The system follows a layered architecture that clearly separates user interaction, background processing, device communication, and operating system–specific behavior. This separation ensures stability, responsiveness, and maintainability across both Windows and macOS platforms.

At a high level, the application consists of:

• A background scheduling engine
• A controlled synchronization engine
• Platform-specific system integrations
• Persistent configuration storage

---

2. Core Architectural Layers

2.1 User Interface Layer

The user interface is responsible for all user interaction, including configuration, monitoring, and manual control of synchronization.

Key responsibilities:

• Display system and sync status
• Allow configuration of devices and schedules
• Trigger manual synchronization
• Show upcoming scheduled sync times

---

2.2 Background Scheduling Layer

The scheduling layer automates attendance synchronization at user-defined intervals.

Key responsibilities:

• Execute sync jobs on a schedule
• Restore schedules after application restarts
• Track job status and next execution times

This layer ensures that attendance data can be synchronized automatically without requiring the application window to remain open.

---

2.3 Synchronization Execution Layer

The synchronization layer handles all communication with biometric devices and ERPNext.

Key responsibilities:

• Connect to ZKTeco biometric devices
• Retrieve attendance logs
• Normalize and validate attendance data
• Send data securely to ERPNext

---

2.4 Timeout Layer

In real-world environments, network interruptions and unreachable devices are common. To protect the application from becoming unresponsive, a watchdog mechanism continuously monitors synchronization operations.

Purpose:

• Detect long-running or stalled sync operations
• Abort and recover from hangs safely
• Restore the application to a usable state

This layer ensures that failures never require force-quitting the application.

---

3. Platform-Specific Integration

The application includes a dedicated integration layer to handle operating system–specific functionality.

3.1 System Tray & Menu Bar Integration

Because system tray behavior differs significantly across platforms, the application uses native integrations on each OS.

Supported behaviors:

• Run quietly in the background
• Provide quick access via tray or menu bar
• Allow users to open, sync, or exit the application

This approach delivers a native user experience on both Windows and macOS.

---

3.2 Automatic Startup

The application supports automatic startup when the operating system boots.

Design considerations:

• Startup behavior differs across platforms
• The application ensures correct initialization regardless of OS
• Users do not need to manually launch the application each day

---

4. Configuration & Persistence

All user configuration is stored locally using structured configuration files.

Persisted settings include:

• Registered biometric devices
• Sync intervals and schedules
• Enabled or disabled sync jobs

This persistence ensures that user settings are preserved across restarts, updates, and system reboots.

---

5. Data Flow Overview

The system follows a clear and predictable data flow:

1. Attendance data is collected from biometric devices
2. Data is validated and normalized
3. Clean data is transmitted to ERPNext

Guarantees provided by the architecture:

• No duplicate data submissions
• Safe recovery from partial failures

---

6. Failure Handling Strategy

The architecture is designed with failure as a first-class concern.

Handled scenarios include:

• Network outages
• Unreachable devices
• Interrupted synchronization
• Unexpected application restarts

In all cases, the system prioritizes safe recovery over silent failure.

---

7. Problems Faced & How They Were Solved

This project encountered several real-world challenges that significantly influenced the final architecture. Below are the key problems and the architectural solutions applied to overcome them.

7.1 Cross-Platform System Tray Differences

Problem:
Windows and macOS provide fundamentally different system tray and menu bar APIs. Early attempts to use a single abstraction resulted in instability and inconsistent behavior.

Solution:

• Implemented platform detection at runtime
• Used native system tray integration per OS
• Isolated platform-specific logic into dedicated modules

This ensured a stable and native user experience on both platforms.

---

7.2 Background Sync Blocking the UI

Problem:
Long-running sync operations caused the application interface to freeze, leading to a poor user experience.

Solution:

• Moved all sync operations to background threads
• Enforced a strict separation between UI and background execution
• Ensured UI updates are always executed on the main thread

This preserved UI responsiveness regardless of sync duration.

---

7.3 Concurrent Sync Race Conditions

Problem:
Scheduled syncs could start while a manual sync was already running, causing duplicate or corrupted attendance data.

Solution:

• Introduced a global synchronization lock
• Allowed only one sync operation at a time
• Implemented skip logic for scheduled jobs when a sync is already active

This eliminated race conditions and protected data integrity.

---

7.4 Infinite Sync & Device Hang Issues

Problem:
Network failures or unreachable devices caused sync operations to hang indefinitely, forcing users to terminate the application.

Solution:

• Added a watchdog timeout mechanism
• Monitored sync execution duration
• Automatically aborted and recovered from stalled operations

This ensured the application could recover gracefully from external failures.

---

7.5 Startup Failures on Windows

Problem:
When launched at system startup, the application failed due to incorrect working directory resolution.

Solution:

• Introduced a startup launcher that explicitly sets the working directory
• Ensured consistent initialization regardless of launch context

This guaranteed reliable startup behavior.

---

7.6 Configuration Loss After Restart

Problem:
Users had to reconfigure devices and schedules after every application restart.

Solution:

• Implemented persistent configuration storage using structured files
• Automatically restored scheduler state and device settings on startup

This significantly improved usability and user trust.

---

7.7 Thread-Unsafe UI Updates

Problem:
Direct UI updates from background threads caused random crashes and undefined behavior.

Solution:

• Enforced a single-threaded UI update policy
• Routed all UI updates through the main event loop

This stabilized the application and removed intermittent UI failures.

---

8. Summary

The ZKTeco Attendance Sync System architecture focuses on robustness, clarity, and user trust.

While the business logic is straightforward, the true architectural strength lies in:

• Careful handling of background operations
• Strong failure recovery mechanisms
• Deep integration with each operating system

This approach ensures a dependable attendance synchronization experience across platforms and deployment environments.
